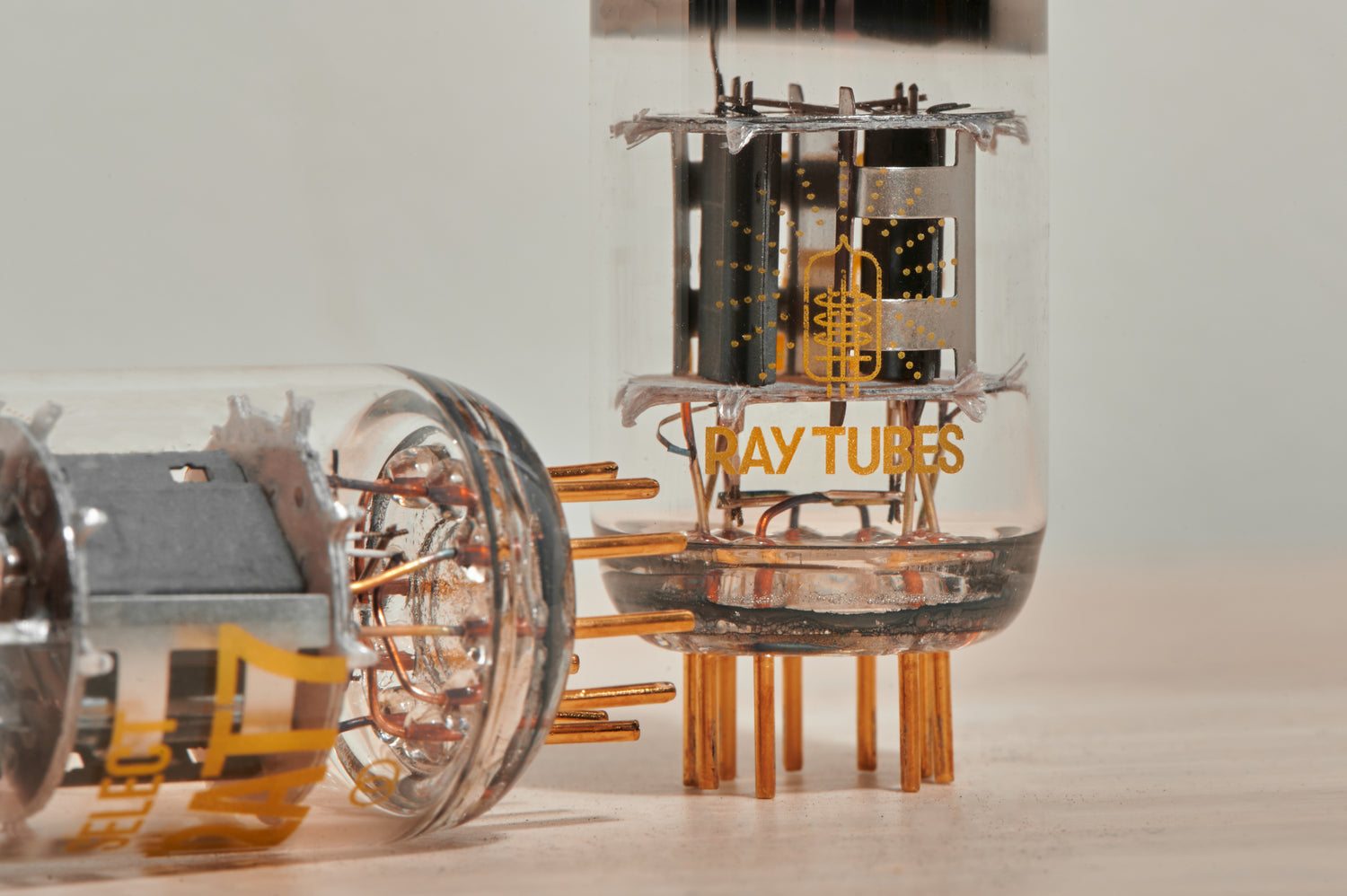

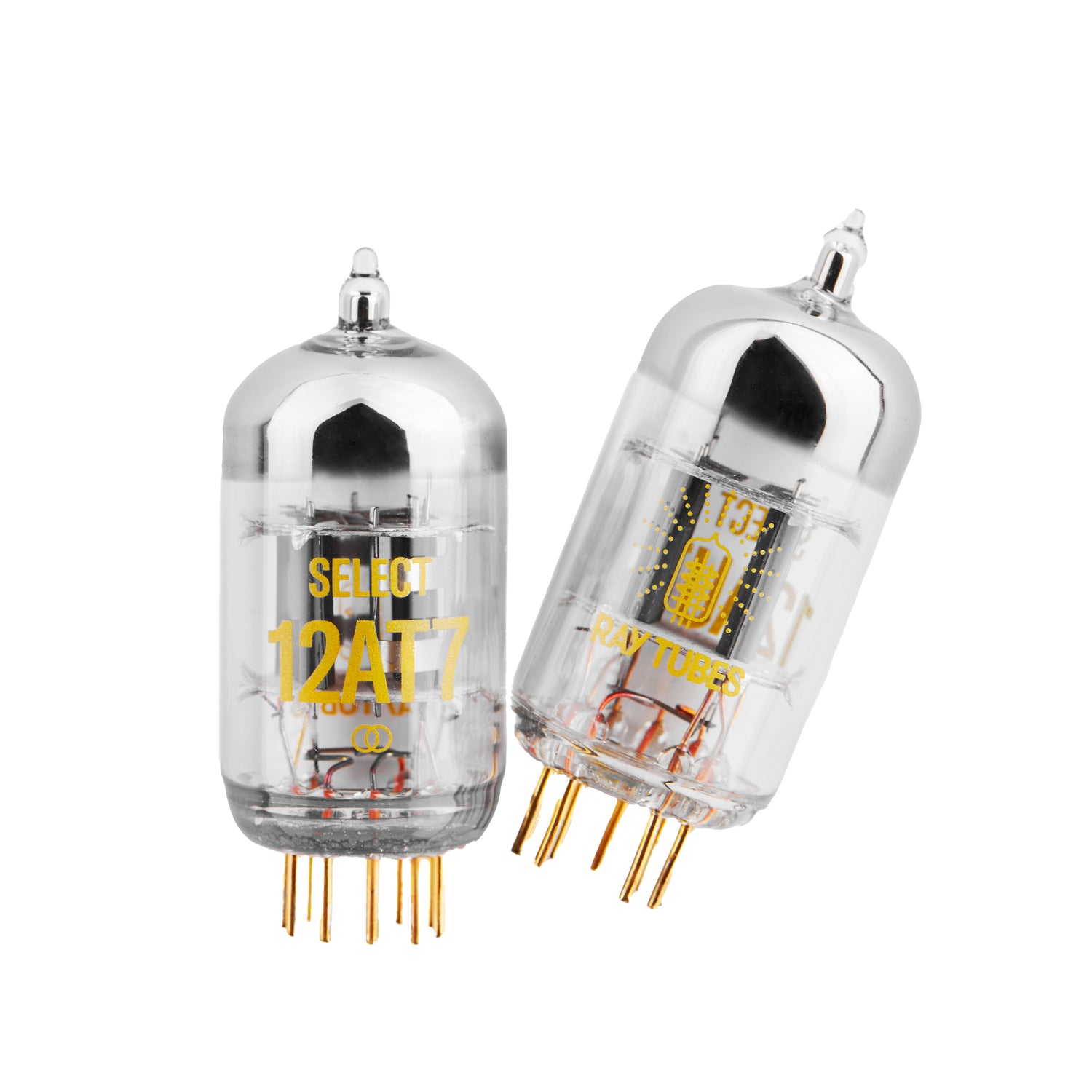

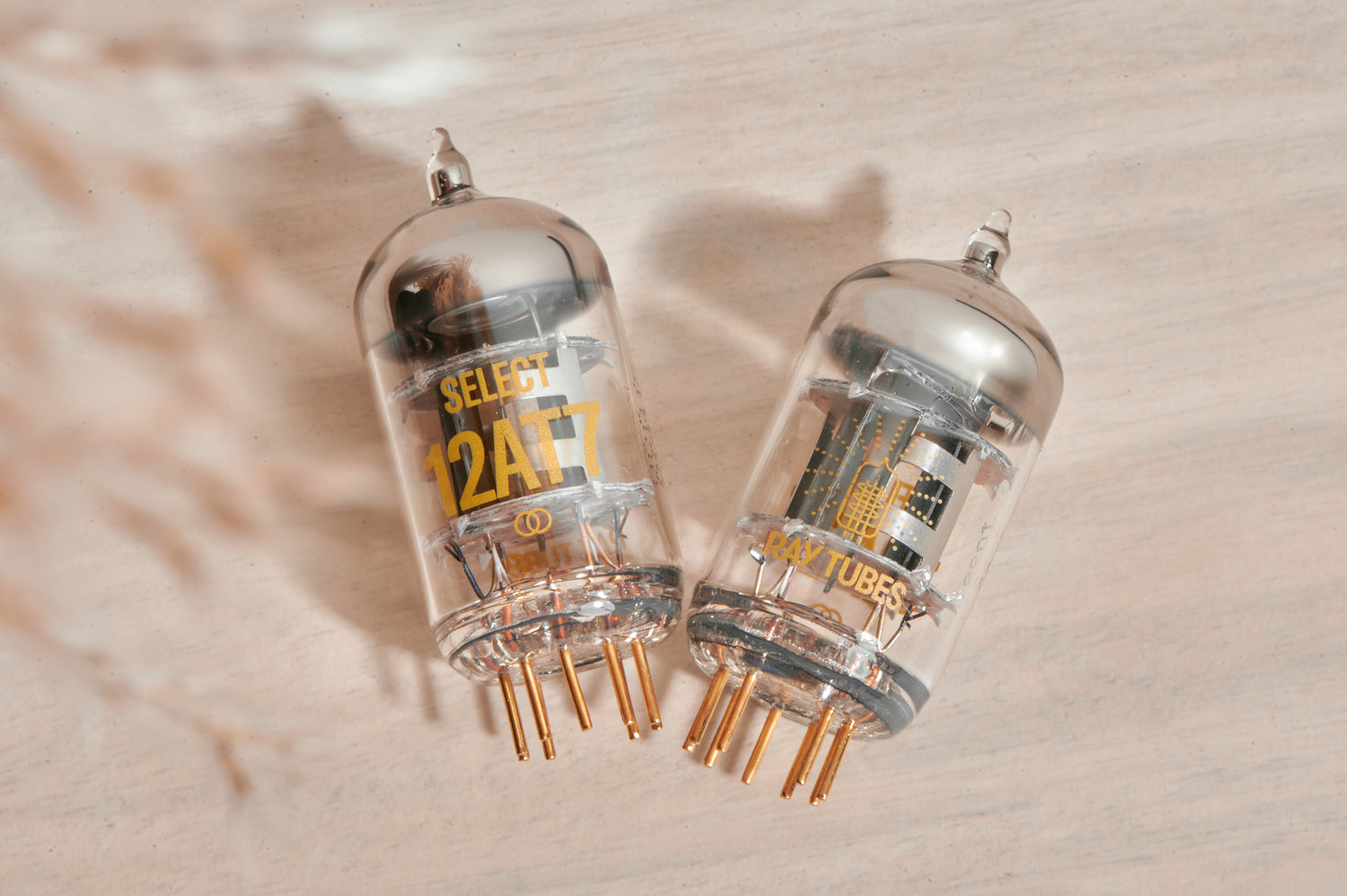

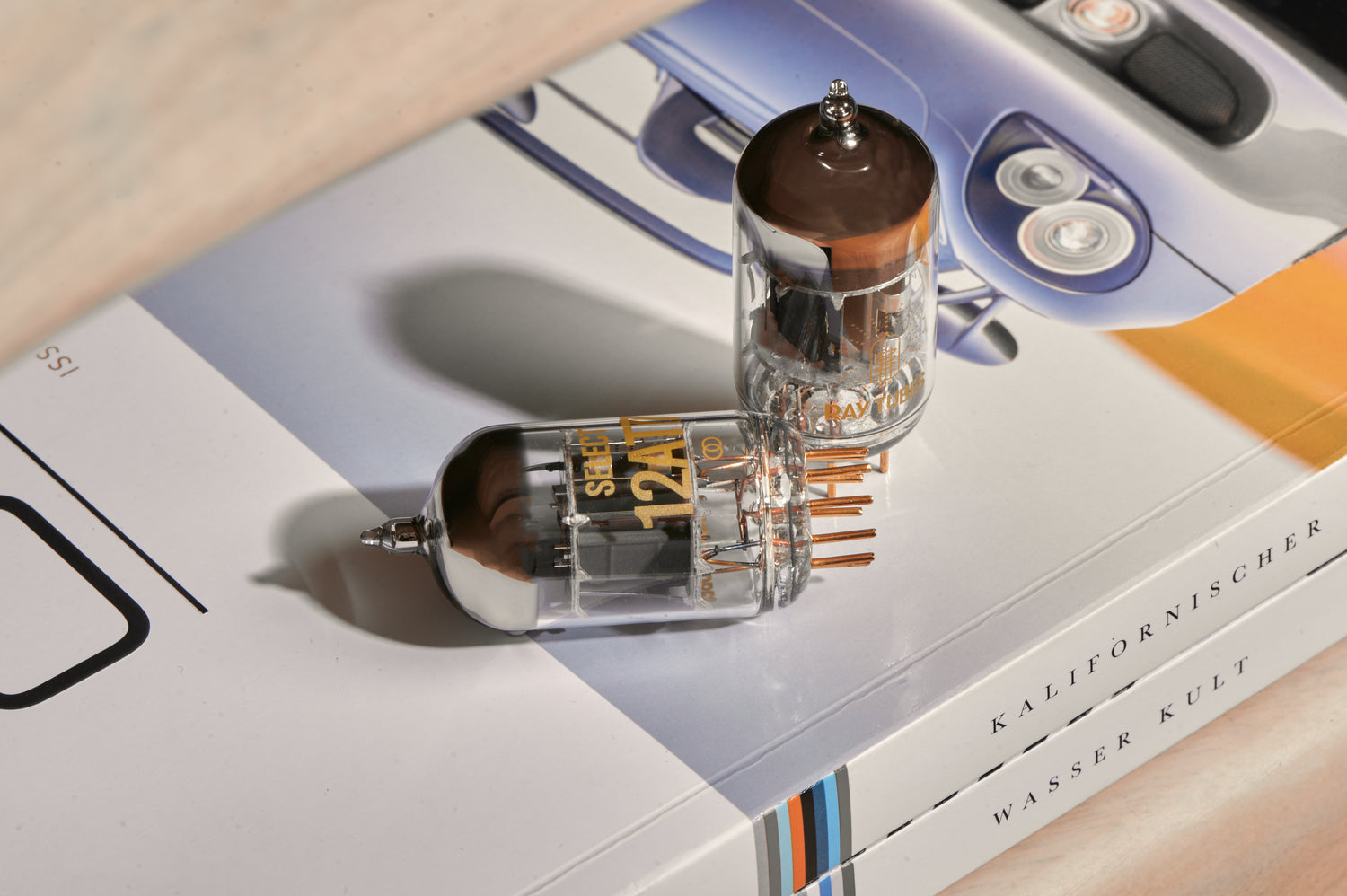

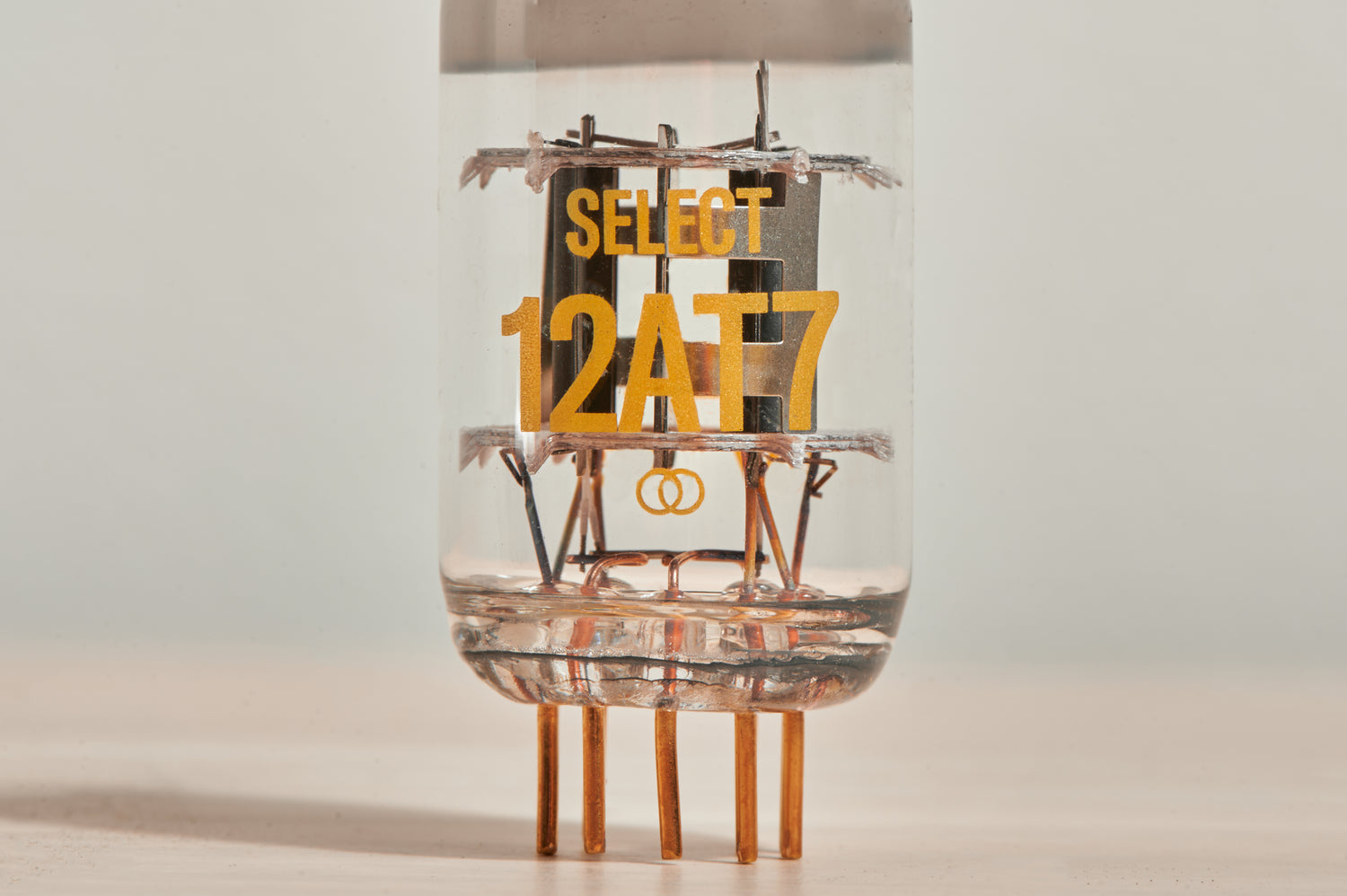

Ray Tubes SELECT 12AT7
The 12AT7 is part of a large family of dual triodes that also includes the common 12AX7 and 12AU7 tubes.
Its higher gain and transconductance made it suitable for high frequency applications in devices like TVs and FM radios. In the world of audio, it's commonly used as a driver or phase inverter in push-pull audio circuits.
Product Highlights
The Ray Tubes SELECT Collection offers the best tubes youʼll ever need. It goes above and beyond the baseline to bring out the best in all your favorites.
● Designed and manufactured by a team with decades of experience
● Hand-selected by engineers—only the top tubes make the cut
● Gold pins for durability and longevity
● Substantially more consistent performance than New Old Stock
● Unlike NOS and most other new production, covered by the Ray Tubes
One Year Warranty
Sound Characteristics
The SELECT 12AT7 offers a balanced and natural sound, perfect for users seeking fine detail and mid-to-high frequency performance.
● The bass is tight and well-controlled, emphasizing clarity over deep bass,
making it suitable for genres like jazz and light classical.
● The midrange frequencies are warm and natural, excelling at the
reproduction of vocals and acoustic instruments.
● The treble performance is clear and well-balanced with rich detail.
● The dynamics are nuanced, accurately representing subtle changes in
volume. The soundstage is wide with good positioning, making it ideal for
large-scale and complex arrangements
Our Quality Control
Our Quality Control Each tube undergoes a seven-step quality control process, including a 24-hour burn-in period, stress tests to minimize microphonics, and critical parameters that are carefully measured to ensure consistency and accurate matching. Finally, sound engineers assess each tube under real-world listening conditions.
By the end of the quality control process, only 5% of tubes commissioned for production meet Ray Tubesʼ standards.
Our Warranty
Books have been written about the countless ways vacuum tubes can and do fail. With most manufacturers, and all New Old Stock, a tube failure leaves the user high and dry. Ray Tubes is different. All Ray Tubes products are backed by the Ray Tubes One Year Warranty, which covers manufacturing defects for twelve months from the date of purchase.
SELECT 12AT7 Specifications
|
Specification |
Value |
|
Tube Socket |
9-pin |
|
Max Anode Dissipation Power |
2.5 W |
|
Max Anode Voltage |
300 V |
|
Max Screen Voltage |
N/A |
|
Max Grid Voltage |
~50 V |
| Heater Voltage |
6.3V (Parallel)| 12.6V (Series) |
|
Heater Current |
0.3 A (Parallel)|0.15 A (Series) |
|
Transconductance |
4 - 5.5 mA/V |
|
Amplification Factor |
60 |
|
Internal Resistance |
12.95 kΩ |
