Ray Tubes SELECT and RESERVE EL34

The EL34 is a power pentode vacuum tube that was introduced by Mullard in 1955 and is usually found in an amplifierʼs final output stage. Befitting its British origins, the EL34 was commonly used in amps built by companies like Marshall and Vox—as such, it became associated with British music of that era.

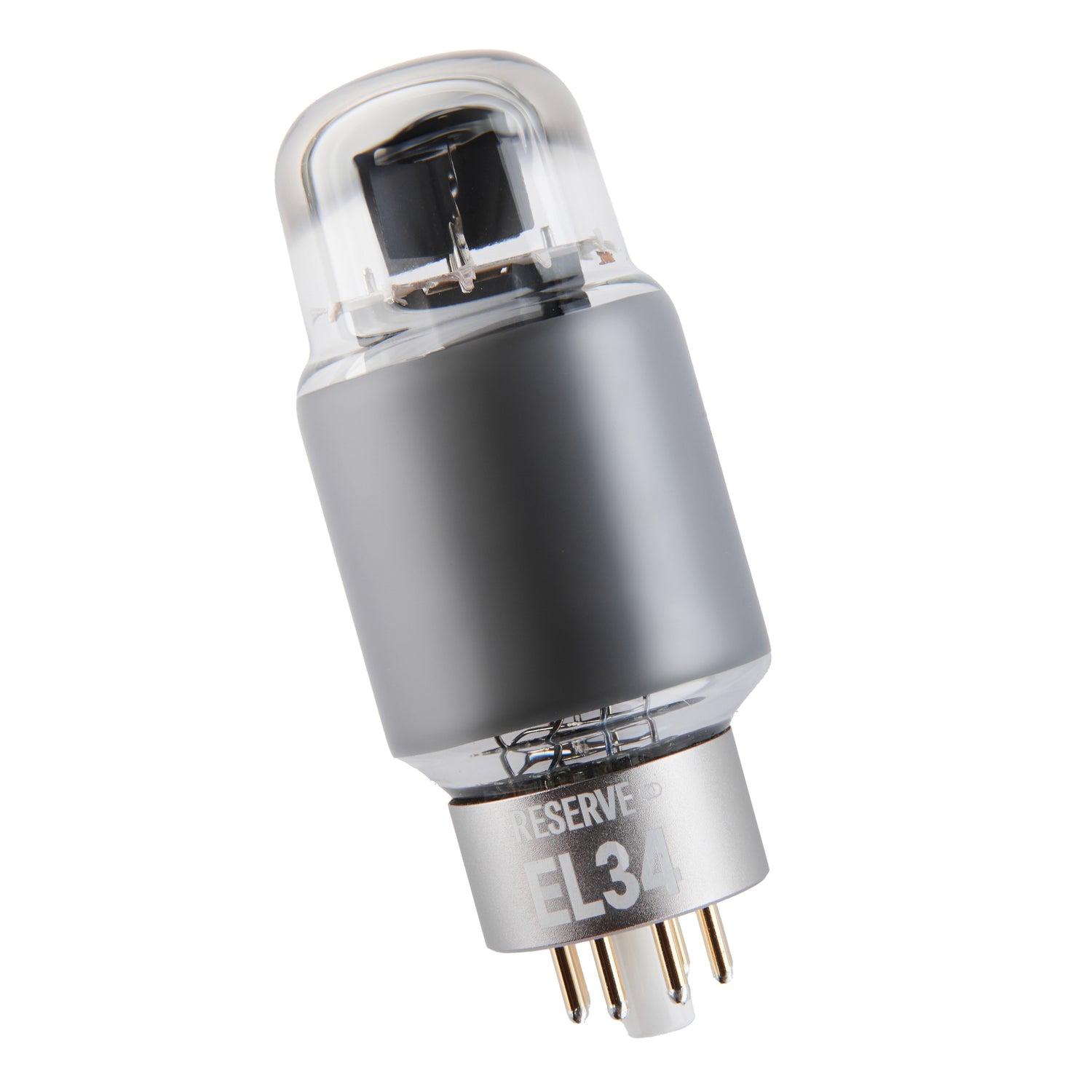

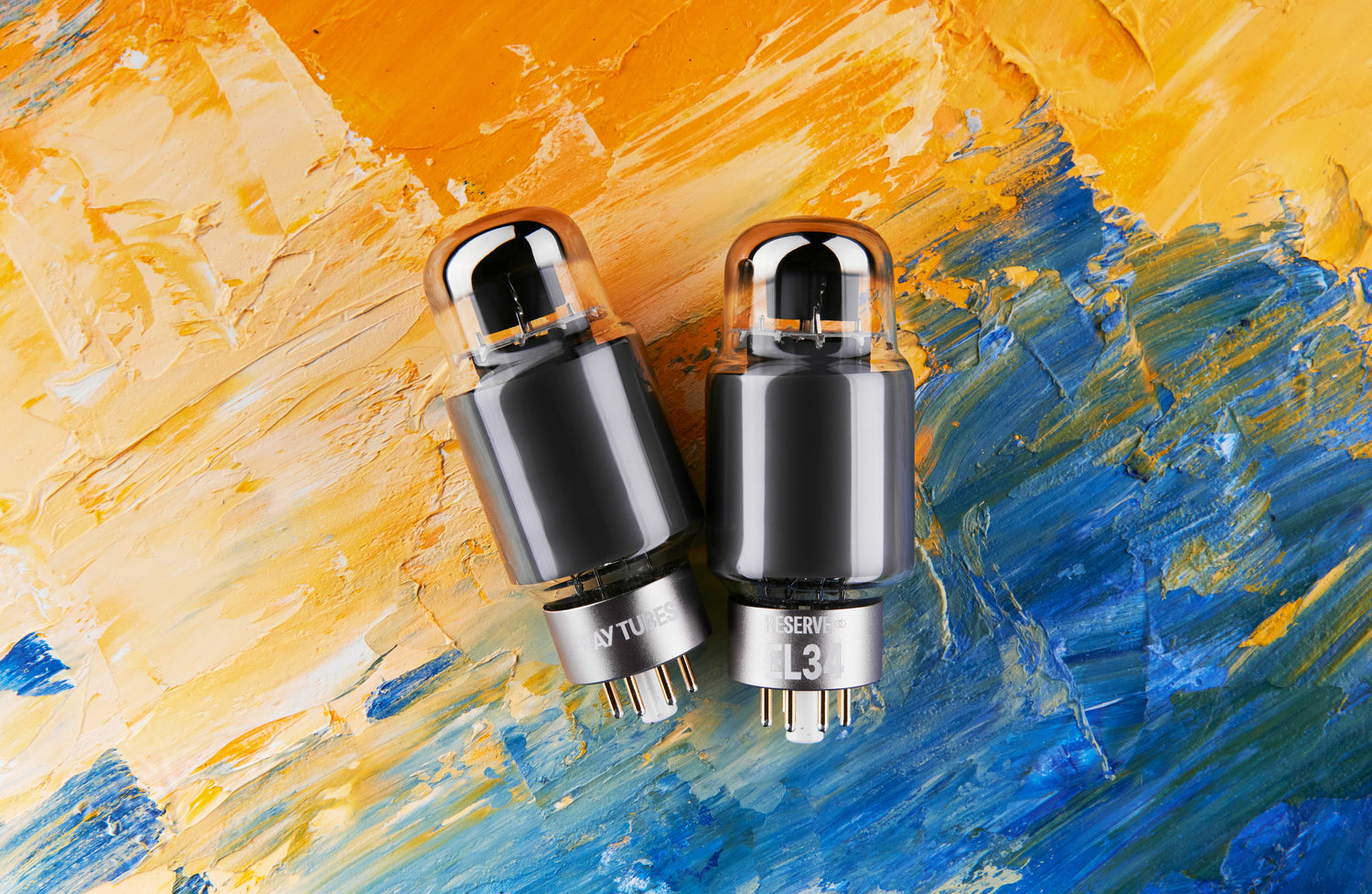

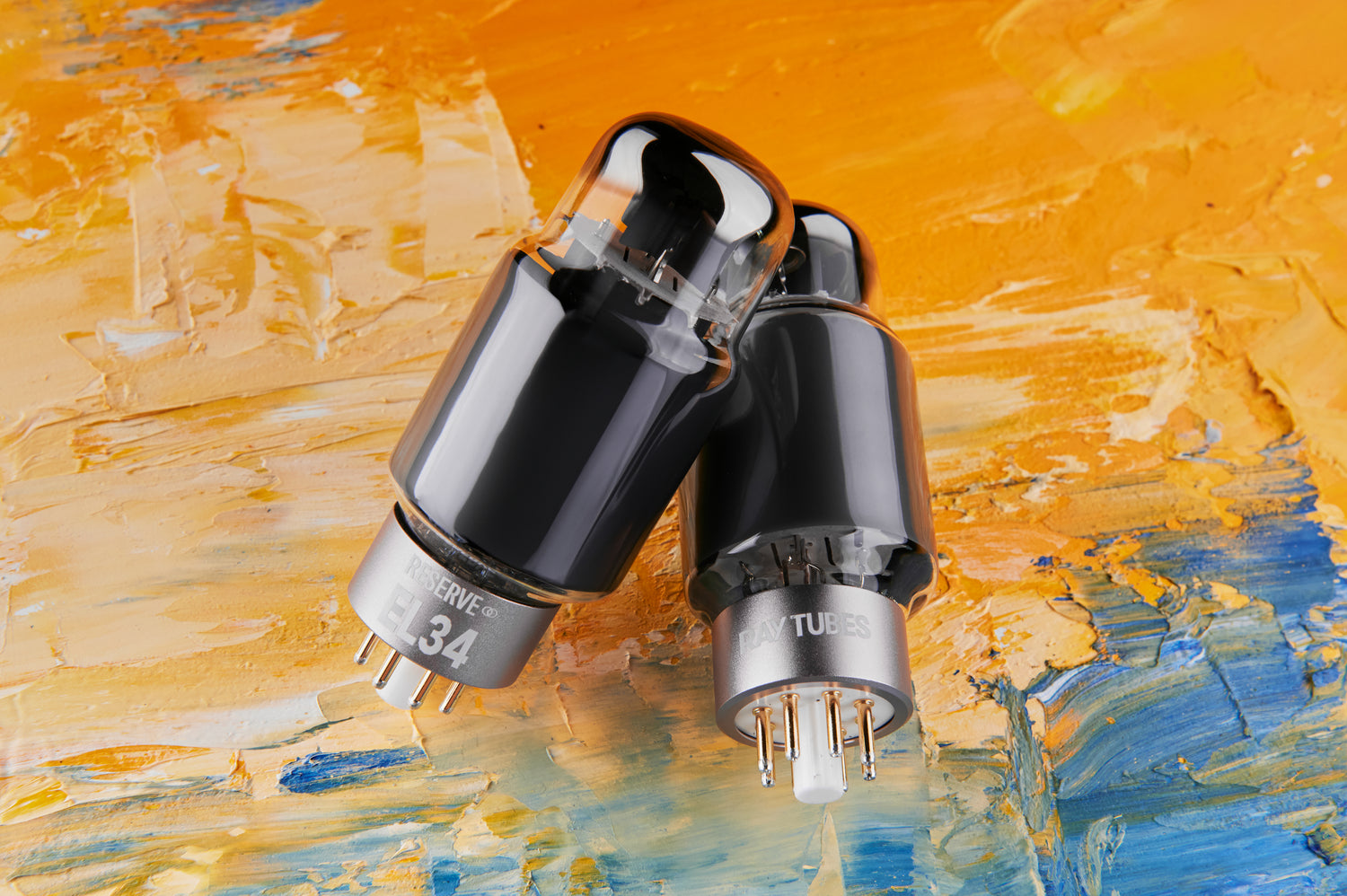

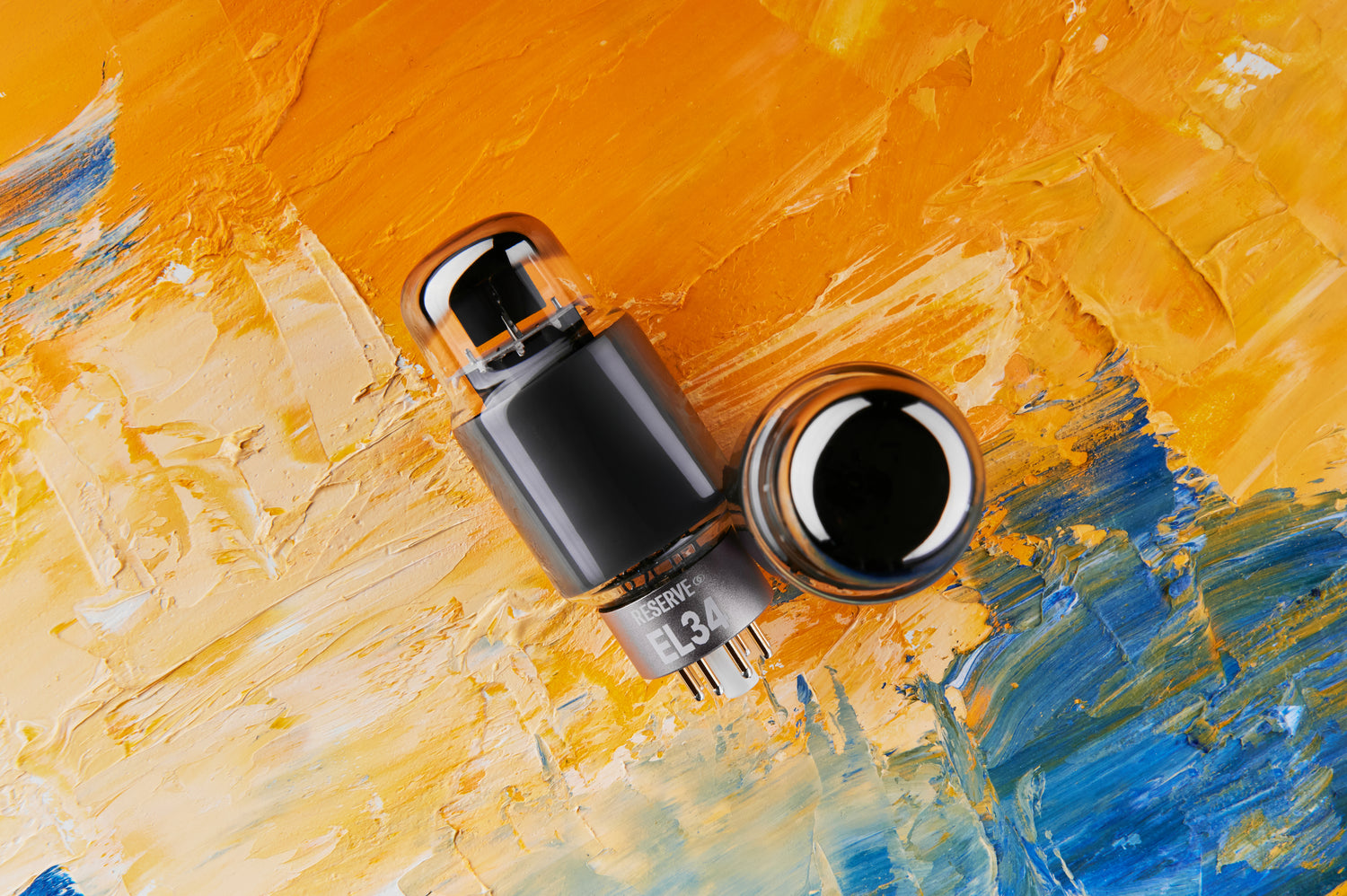

RESERVE EL34 Product Highlights

The Ray Tubes RESERVE Collection isnʼt for everyone. Itʼs the distillation of decades of experience. RESERVE reveals audio details you never knew were there.

● Bespoke design and small-batch production
● Hand-selected by engineers to our most meticulous standards
● Higher quality materials, including gold pins for longevity
● Monocrystalline carbon Magic Coating for improved heat dissipation
● Substantially more consistent performance than New Old Stock
● Unlike NOS and most other new production, covered by the Ray Tubes
One Year Warranty

Sound Characteristics for the RESERVE

The RESERVE EL34 offers powerful low frequencies, a balanced midrange,
clear high frequencies, and excellent resolution. Its wide dynamic range and
soundstage make it ideal for large-scale, complex compositions.

● Bass is solid and powerful, clearly showcasing the layering of low
frequencies in genres like rock and electronic music.
● The midrange frequencies are balanced and full with excellent detail
reproduction and a rich, warm layering.
● The treble performance is bright and transparent, exhibiting high levels of
detail without excessive harshness or interference.
● The dynamic range is very wide, while the soundstage is expansive with
rich layers and an excellent sense of space.

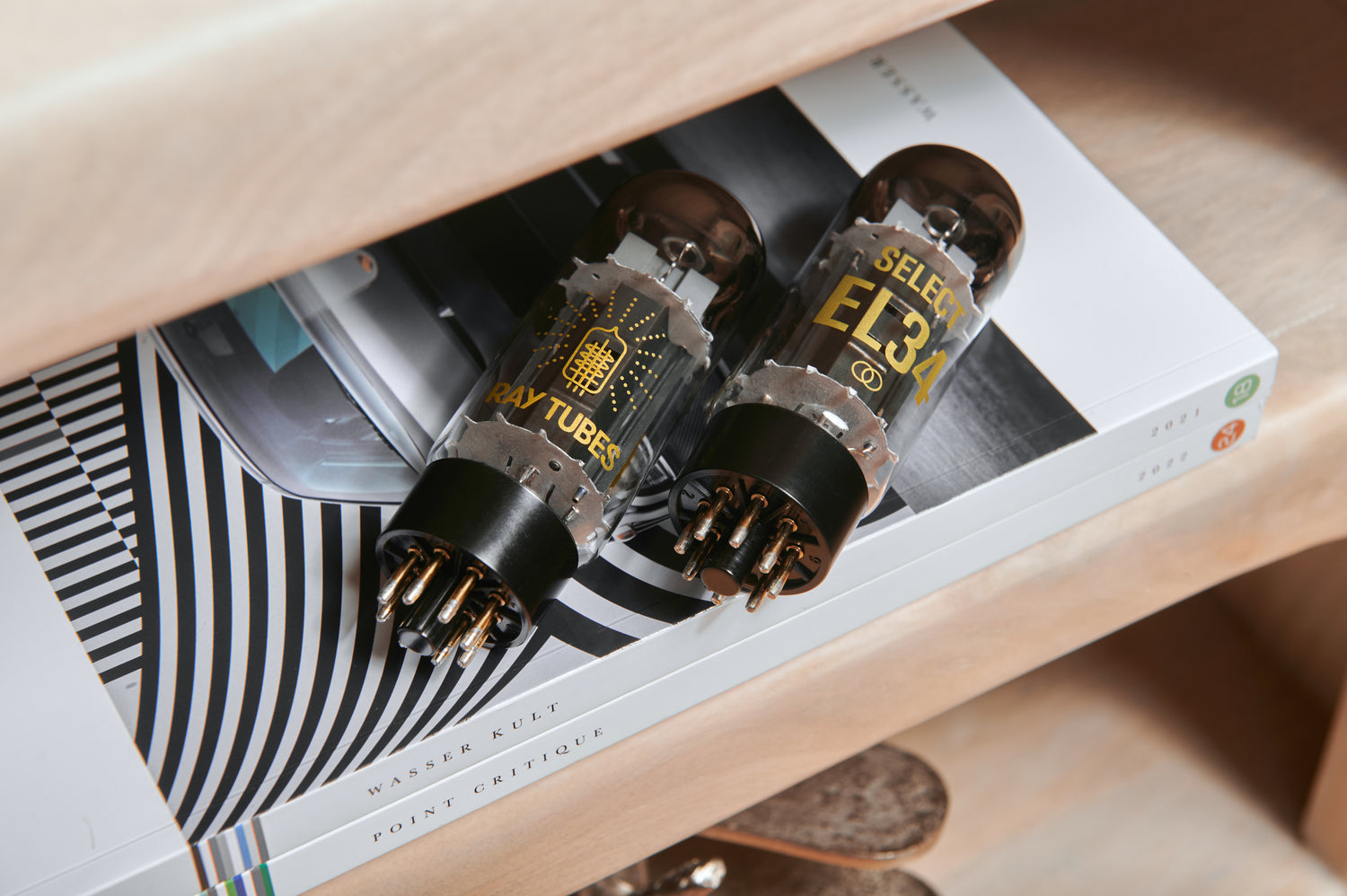

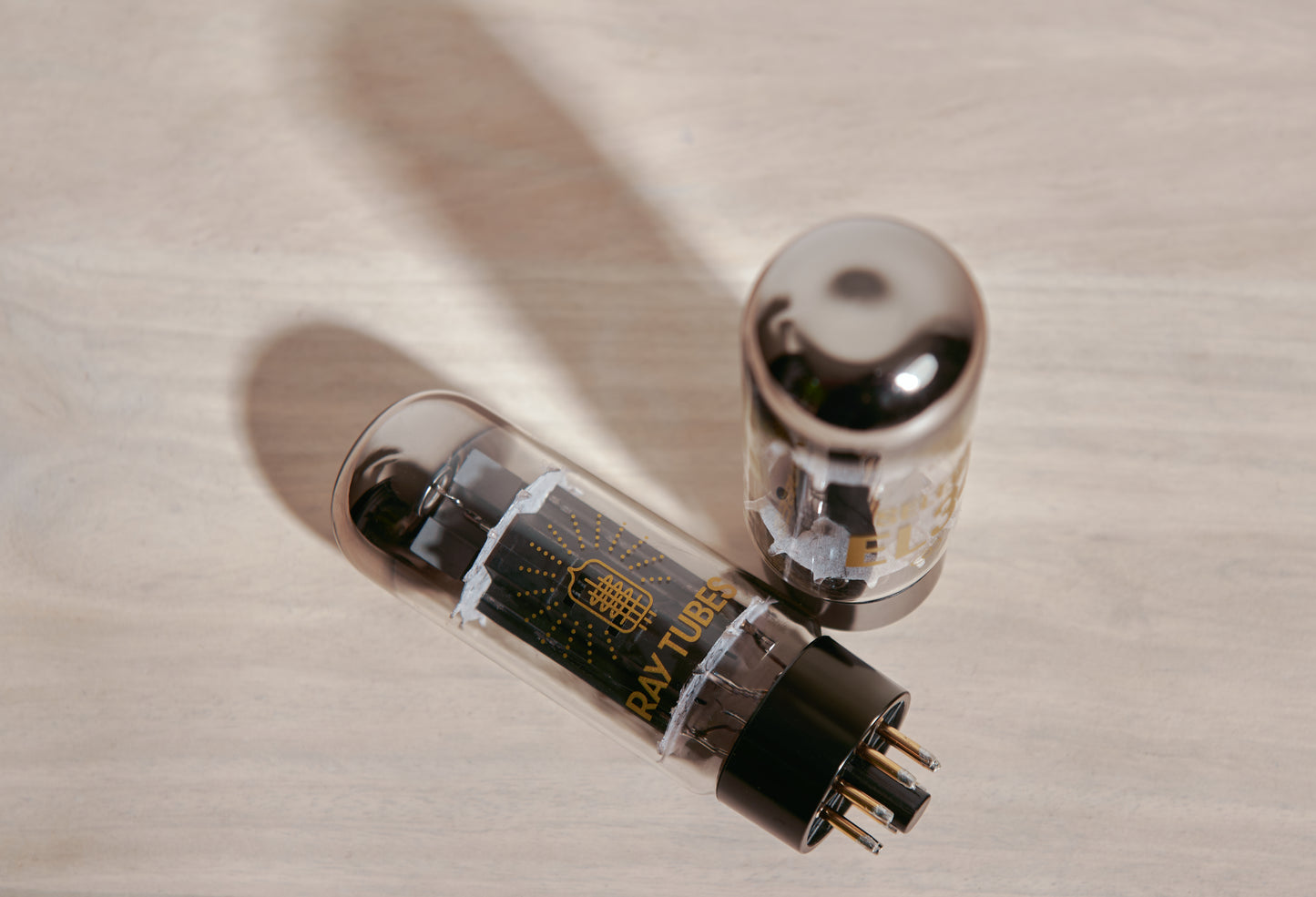

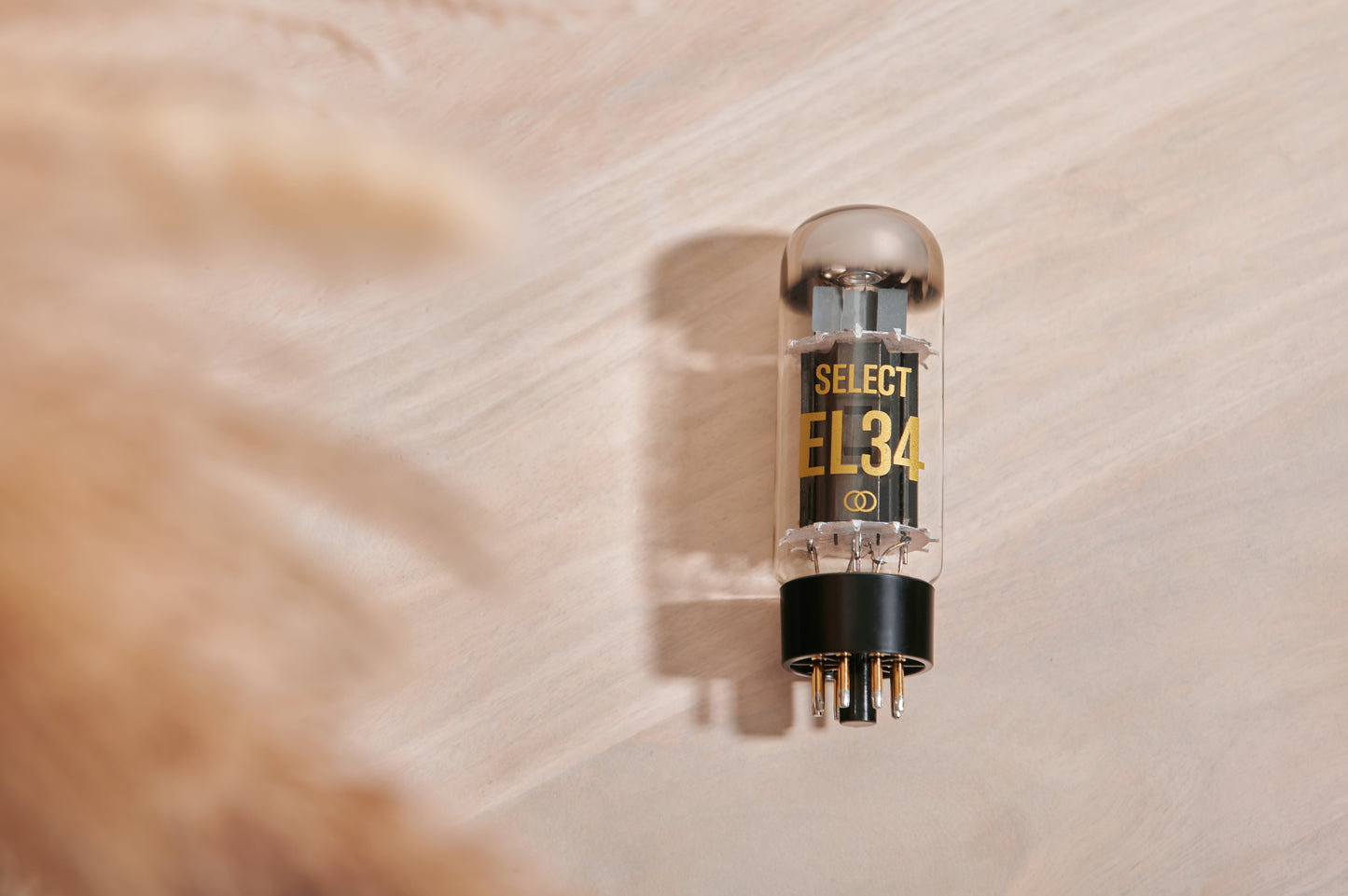

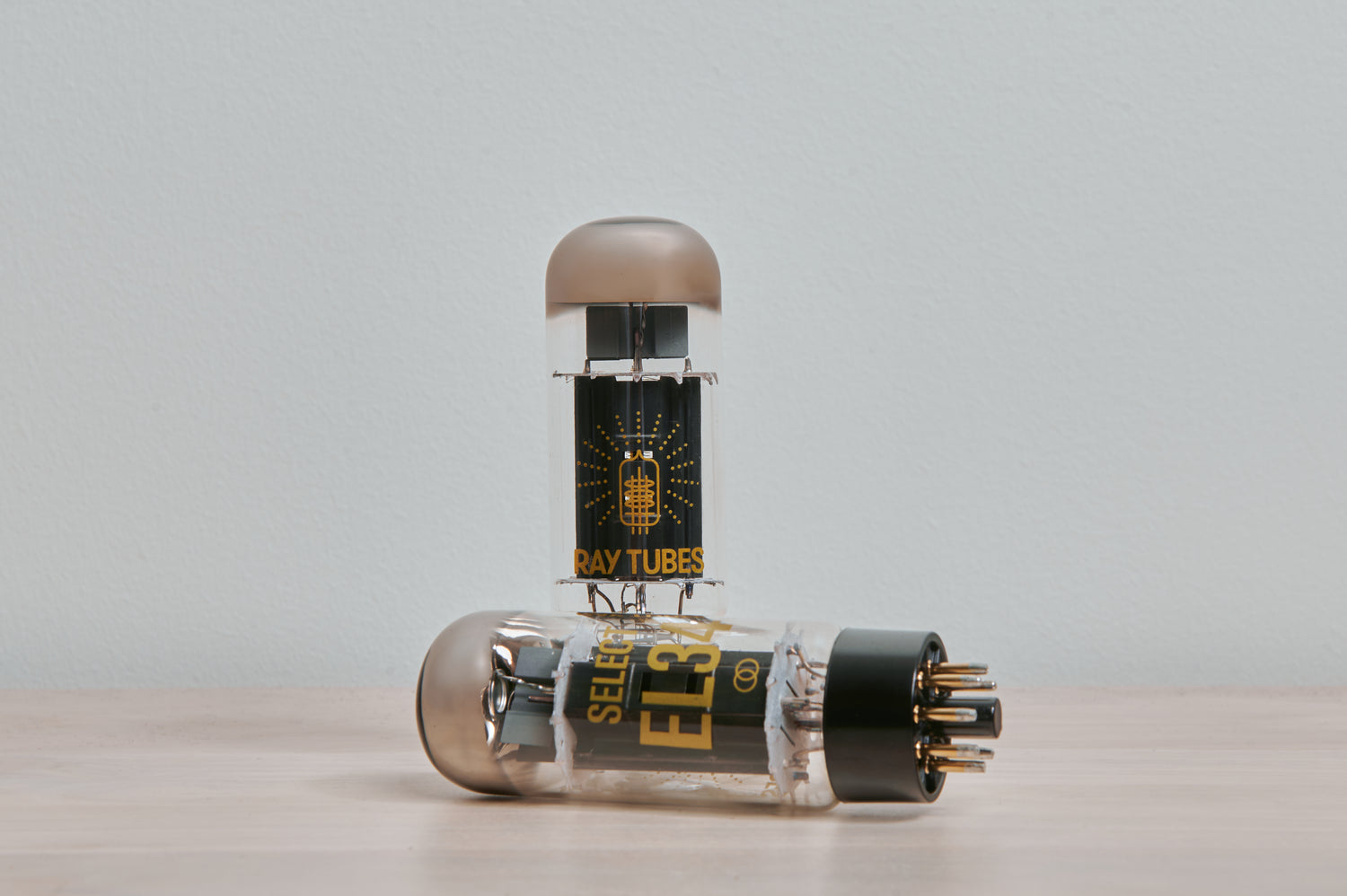

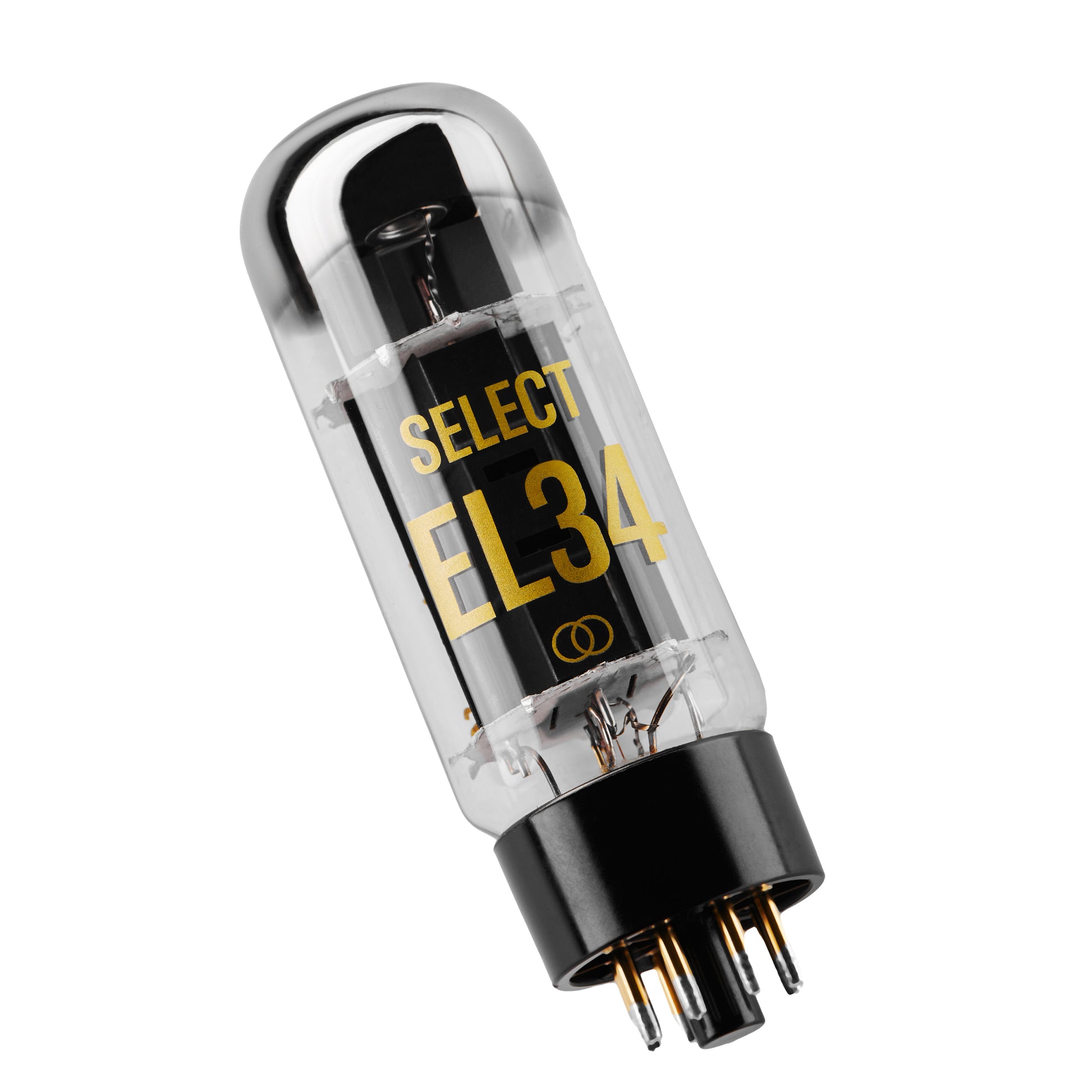

SELECT EL34 Product Highlights

The Ray Tubes SELECT Collection offers the best tubes youʼll ever need. It goes above and beyond the baseline to bring out the best in all your favourites.

● Designed and manufactured by a team with decades of experience
● Hand-selected by engineers—only the top tubes make the cut
● Gold pins for durability and longevity
● Substantially more consistent performance than New Old Stock
● Unlike NOS and most other new production, covered by the Ray Tubes
One Year Warranty

Sound Characteristics for the SELECT EL34

The SELECT EL34 offers powerful base and rich mid-to-high frequencies, perfect for users seeking balanced and detailed sound.

● The bass is solid with a very clear low-end, making it ideal for genres like
rock and electronic music.
● The midrange frequencies are full and natural with a warm, expressive
tone. Vocals especially are detailed and realistic.
● The treble performance is clear and richly-detailed without excessive
harshness.
● The dynamics are particularly suited to large contrasts, while the
soundstage is wide with precise imagining and layers.

Our Quality Control

Our Quality Control Each tube undergoes a seven-step quality control process, including a 24-hour burn-in period, stress tests to minimize microphonics, and critical parameters that are carefully measured to ensure consistency and accurate matching. Finally, sound engineers assess each tube under real-world listening conditions.
By the end of the quality control process, only 5% of tubes commissioned for production meet Ray Tubesʼ standards.

Our Warranty

Books have been written about the countless ways vacuum tubes can and do fail. With most manufacturers, and all New Old Stock, a tube failure leaves the user high and dry. Ray Tubes is different. All Ray Tubes products are backed by the Ray Tubes One Year Warranty, which covers manufacturing defects for twelve months from the date of purchase.

RESERVE EL34 Specifications

Specification	Value
Tube Socket	8-pin
Max Anode Dissipation Power	25 W
Max Screen Dissipation Power	8 W
Output Power in Class A1 Amp (Single Tube)	Greater than 10 W
Output Power in Class AB1 Amp	Greater than 35 W
Max Anode Voltage	800 V
Max Screen Voltage	500 V
Max Grid Voltage	~12.2 V
Heater Voltage	6.3 V
Heater Current	1.5 A
Transconductance	11 mA/V
Amplification Factor	11
Internal Resistance	15 kΩ

Tetrode Connection

Specification	Value
Screen Voltage	250 V
Anode Voltage	250 V
Anode Current	100 mA

SELECT EL34 Specifications

Specification	Value
Tube Socket	8-pin
Max Anode Dissipation Power	25 W
Max Screen Dissipation Power	8 W
Output Power in Class A1 Amp (Single Tube)	Greater than 10 W
Output Power in Class AB1 Amp	Greater than 35 W
Max Anode Voltage	300 V
Max Screen Voltage	500 V
Max Grid Voltage	~15 V
Heater Voltage	6.3 V
Heater Current	1.5 A
Transconductance	11 mA/V
Amplification Factor	11
Internal Resistance	15 kΩ

Tetrode Connection

Specification	Value
Screen Voltage	250 V
Anode Voltage	250 V
Anode Current	140 mA
Grid Voltage	15 V
Grid Current	3 mA
Amplification Factor	8
Internal Resistance	12 kΩ
